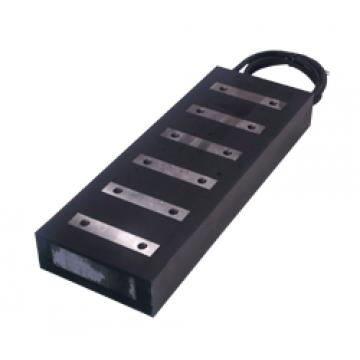

Basic Specifications Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless AmplifierPerformance Specifications
Model Unit SWL-PE10C SWL-PE20C SWL-PE30C SWL-PE40C Continuous Force [ N ] 401.8 822.6 1231.6 1638.0 Max. Force [ N ] 1205.4 2467.7 3694.7 4915.0 Continuous Current [ Arms ] 11.3 11.3 11.3 11.3 Max. Current [ Arms ] 33.9 33.9 33.9 33.9 Electrical Power [ W ] 2134.2 2134.2 2134.2 2134.2 Power Loss [ W ] 195.0 390.0 585.0 779.8 Resistance (Line toLine) [ Ω ] 0.82 1.63 2.47 3.26 Inductance (Line toLine) [ mH ] 5.78 11.56 17.57 23.13 Force Constant (Kf) [ N/Arms ] 35.56 72.80 108.99 144.96 Back EMF Constant (Ke) [ V/(m/sec)] 12.00 24.00 36.00 48.00 Motor Constant [ N/W^½ ] 26.1 53.4 80.0 106.4 Electrical Time Constant [ msec ] 7.05 7.09 7.11 7.10 POLE Pitch [ mm ] 60.0 60.0 60.0 60.0 Normal Force [ N ] 1750 3500 5250 7000

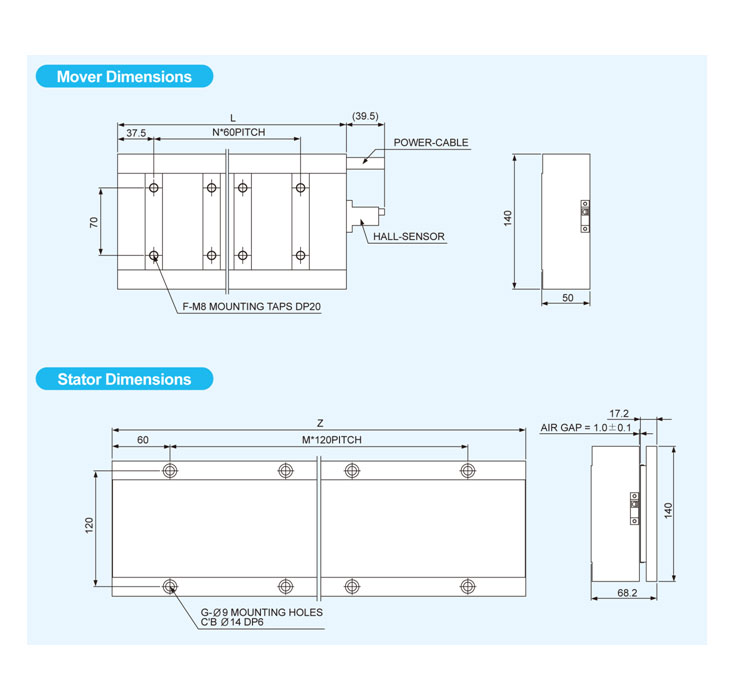

Mover
COIL L N F Weight(kg) SWL-PE10C 145 1 4 3.47 SWL-PE20C 265 3 8 6.47 SWL-PE30C 385 5 12 9.47 SWL-PE40C 505 7 16 12.47 Stator
MAGNET Z M G Weight(kg) SWL-PE240 240 1 4 13.7 SWL-PE360 360 2 6 SWL-PE480 480 3 8 SWL-PE600 600 4 10
