SWL-DM Series
prev zoom next

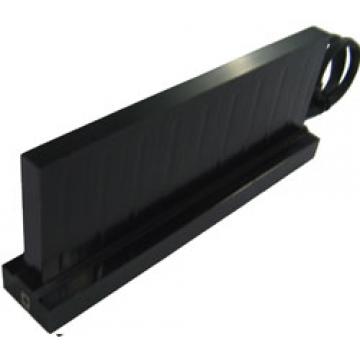

SWL-DM Series

  • 商品货号:ECS000487
  • 商品库存: 1
  • 商品品牌:SEWOOMOTOR
  • 商品重量:0克
  • 上架时间:2016-07-14
  • 商品点击数:2525
  • 购买数量: 商品总价:

商品描述

商品属性

商品标签

相关商品

Basic Specifications


Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier
Air cooling available at no extra cost


Performance Specifications
Model Unit SWL-DM20 SWL-DM30 SWL-DM40 SWL-DM50
Continuous Force [ N ] 83.3 125 166.6 208.3
Max. Force [ N ] 250.0 374.9 499.9 624.9
Continuous Current [ Arms ] 3.65 3.65 3.65 3.65
Max. Current [ Arms ] 11.0 11.0 11.0 11.0
Electrical Power [ W ] 689.4 689.4 689.4 689.4
Power Loss [ W ] 68.7 100.3 131.9 163.5
Resistance (Line toLine) [ Ω ] 3.44 5.02 6.60 8.18
Inductance (Line toLine) [ mH ] 2.18 3.28 4.37 5.46
Force Constant (Kf) [ N/Arms ] 22.82 34.25 45.64 57.07
Back EMF Constant (Ke) [ V/(m/sec)] 7.61 11.41 15.22 19.02
Motor Constant [ N/W^½ ] 9.5 14.3 19.0 23.8
Electrical Time Constant [ msec ] 0.63 0.65 0.66 0.67
POLE Pitch [ mm ] 30.0 30.0 30.0 30.0
Normal Force [ N ] 0 0 0 0

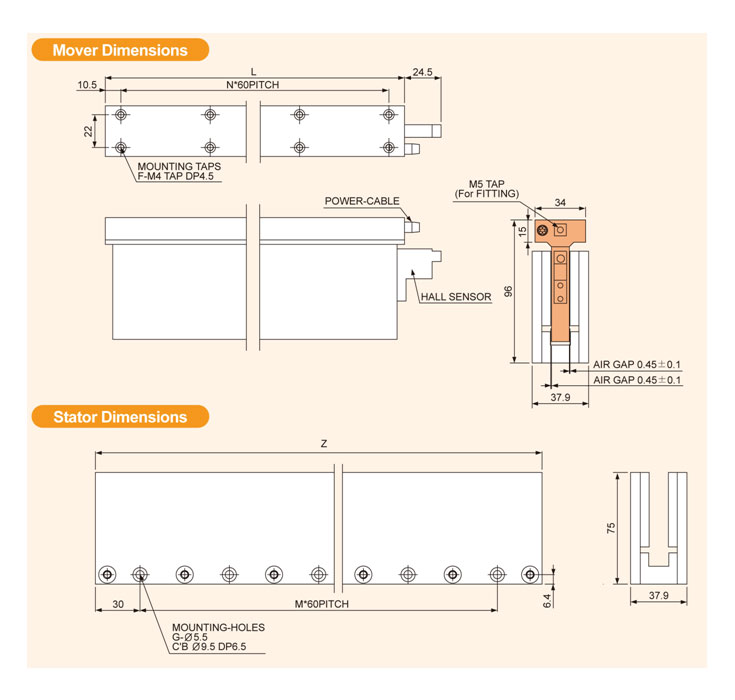

Mover


COIL L N F Weight(kg)
SWL-DM20 141 2 6 0.60
SWL-DM30 201 3 8 0.88
SWL-DM40 261 4 10 1.16
SWL-DM50 321 5 12 1.44

Stator


MAGNET Z M G Weight(kg)
SWL-DM120 120 1 2 11.2/m
SWL-DM180 180 2 3
SWL-DM240 240 3 4
SWL-DM300 300 4 5
SWL-DM360 360 5 6
SWL-DM420 420 6 7
SWL-DM480 480 7 8
SWL-DM540 540 8 9
SWL-DM600 600 9 10
