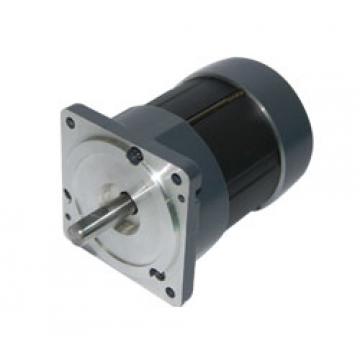

MODEL BD60 N012010 N012015 N012020 N024020 N024040 N024050 N220040 N220060 N220080 Rated Voltage
V 12 24 220 Rated Output
W 10 15 20 20 40 50 40 60 80 Rated Current
A 1.4 2.0 2.8 1.4 2.8 3.5 0.7 0.9 1.2 Rated Speed
r/min 3000 Rated Torque
kgf-cm 0.3 0.4 0.6 0.6 1.3 1.6 1.3 1.9 2.5 Weight
kg 0.5 0.6 0.7 0.5 0.6 0.7 0.5 0.6 0.7 Applicable Driver
SBDM-05A *SBDSMA-02A /
*SBDSMI-03A/
*SBDSMS-03A

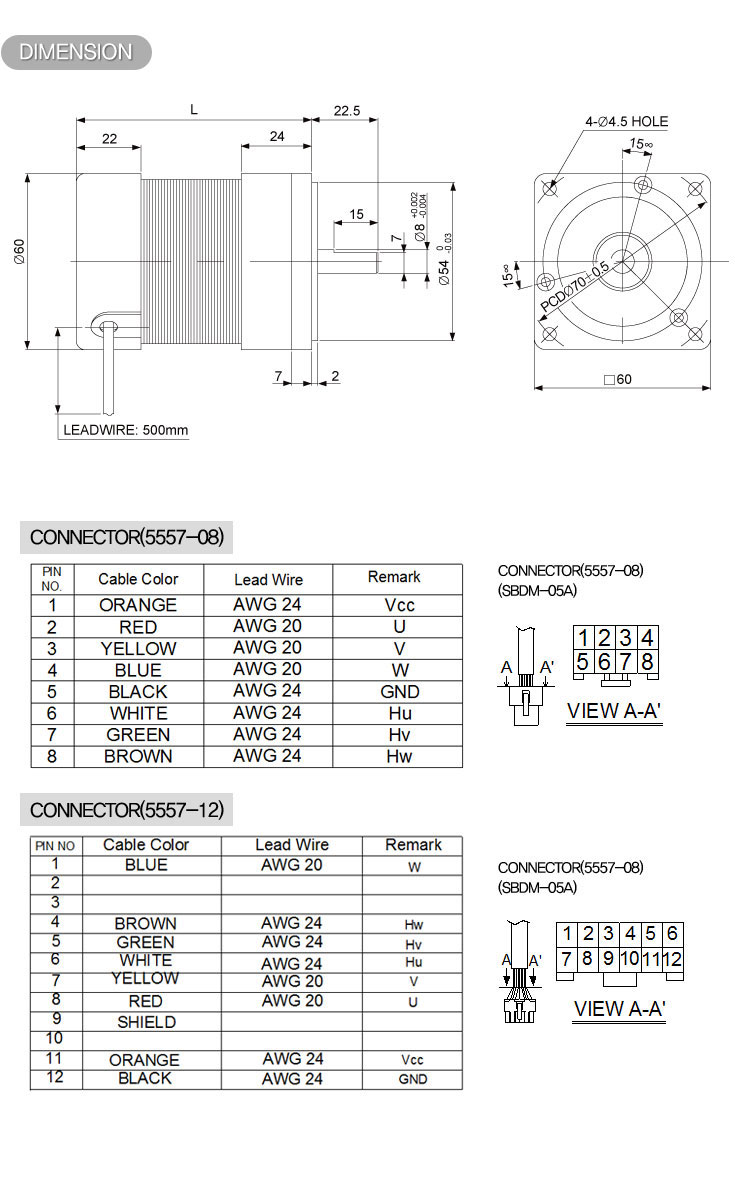

L MODEL 60
N012010 / N024020 / N220040 70
N012015 / N024040 / N220060 80
N012020 / N024050 / N220080
