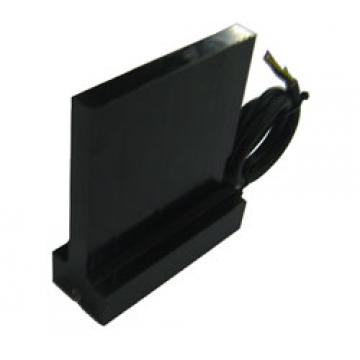

Basic Specifications Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier
Air cooling available at no extra costPerformance Specifications
Model Unit SWL-DL20 SWL-DL30 SWL-DL40 SWL-DL50 Continuous Force [ N ] 188.5 282.7 377 471.2 Max. Force [ N ] 565.4 848.2 1130.9 1413.6 Continuous Current [ Arms ] 10.2 10.2 10.2 10.2 Max. Current [ Arms ] 30.6 30.6 30.6 30.6 Electrical Power [ W ] 1926.5 1926.5 1926.5 1926.5 Power Loss [ W ] 143.6 212.2 280.9 349.6 Resistance (Line toLine) [ Ω ] 0.92 1.36 1.80 2.24 Inductance (Line toLine) [ mH ] 1.09 1.63 2.18 2.72 Force Constant (Kf) [ N/Arms ] 18.48 27.72 36.96 46.20 Back EMF Constant (Ke) [ V/(m/sec)] 5.56 8.34 11.12 13.90 Motor Constant [ N/W^½ ] 12.9 19.3 25.8 32.2 Electrical Time Constant [ msec ] 1.18 1.20 1.21 1.21 POLE Pitch [ mm ] 42.0 42.0 42.0 42.0 Normal Force [ N ] 0 0 0 0

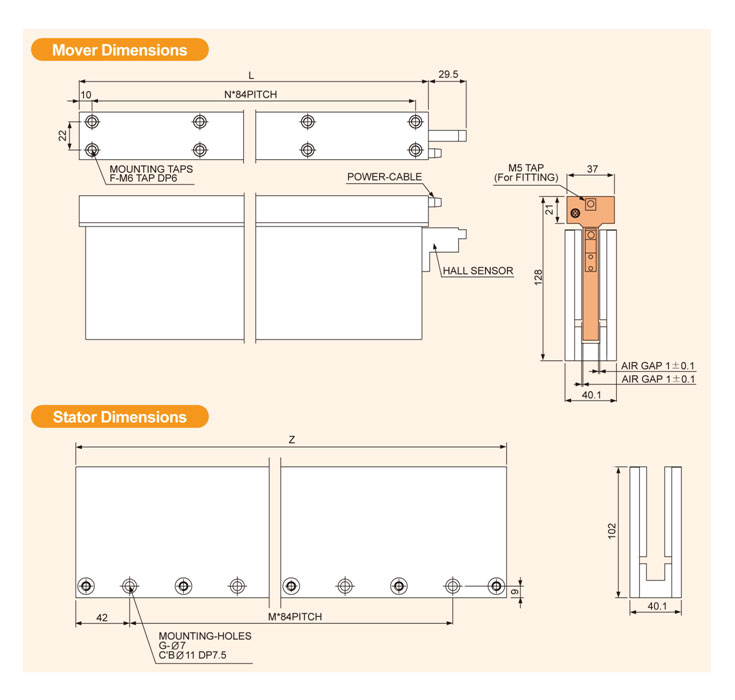

Mover
COIL L N F Weight(kg) SWL-DL20 188 2 6 0.60 SWL-DL30 272 3 8 0.88 SWL-DL40 356 4 10 1.16 SWL-DL50 440 5 12 3.07 Stator
MAGNET Z M G Weight(kg) SWL-DL168 168 1 2 18.6/m SWL-DL252 252 2 3 SWL-DL336 336 3 4 SWL-DL420 420 4 5 SWL-DL504 504 5 6 SWL-DL588 588 6 7
