Basic Specifications Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier
Performance Specifications
Model Unit SWL-PM30Y SWL-PM50Y SWL-PL50Y SWL-TM20C SWL-TG52G Continuous Force [ N ] 256.7 718.5 910.5 179.5 2635 Max. Force [ N ] 770.1 2155.5 2731.4 538.6 7905.0 Continuous Current [ Arms ] 2.8 6.4 12.4 2.8 22.6 Max. Current [ Arms ] 8.4 19.1 37.2 8.4 67.8 Electrical Power [ W ] 528.8 1208.8 2342.0 528.8 4268.5 Power Loss [ W ] 123.0 358.2 373.6 52.0 780.0 Resistance (Line toLine) [ Ω ] 10.30 5.90 1.62 8.61 1.50 Inductance (Line toLine) [ mH ] 34.80 70.00 14.79 8.37 13.50 Force Constant (Kf) [ N/Arms ] 91.68 112.27 73.43 64.11 116.59 Back EMF Constant (Ke) [ V/(m/sec)] 30.60 37.65 24.50 21.30 38.84 Motor Constant [ N/W^½ ] 33.5 62.0 56.4 23.4 121.0 Electrical Time Constant [ msec ] 3.38 11.86 9.13 0.97 9.00 POLE Pitch [ mm ] 30.0 30.0 42.0 30.0 60.0 Normal Force [ N ] 1500.0 1600.0 3225.0 0 0.0

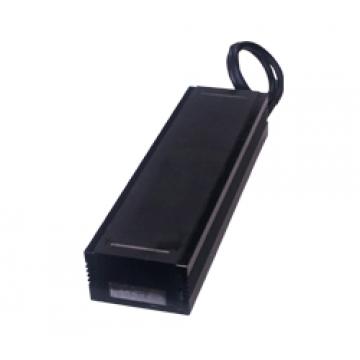

Mover
COIL L N F Weight(kg) SWL-PM30Y 191 - - 2.45 SWL-PM50Y 311 - - 6.68 SWL-PL50Y 436 - - 11.00 SWL-TM20C 132 - - 1.28 SWL-TG52C 610 - - 34.20 Stator
MAGNET Z M G Weight(kg) SWL-PM240 240 3 8 3.6 SWL-PM600 600 9 20 SWL-PL336 336 3 8 6.9 SWL-PL588 588 6 14 SWL-TM240 240 3 4 SWL-TM420 420 6 7 SWL-TG300 300 5 11 SWL-TG600 600 10 21
