SWL-DMI Series
prev zoom

SWL-DMI Series

  • 商品货号:ECS000485
  • 商品库存: 1
  • 商品品牌:SEWOOMOTOR
  • 商品重量:0克
  • 上架时间:2016-07-14
  • 商品点击数:1972
  • 购买数量: 商品总价:

商品描述

商品属性

商品标签

相关商品



Basic Specifications


Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier
Air cooling available at no extra cost


Performance Specifications
Model Unit SWL-DMI20 SWL-DMI30 SWL-DMI40 SWL-DMI50
Continuous Force [ N ] 24.7 37 49.4 61.7
Max. Force [ N ] 74.1 111.1 148.2 185.2
Continuous Current [ Arms ] 1.3 1.3 1.3 1.3
Max. Current [ Arms ] 3.9 3.9 3.9 3.9
Electrical Power [ W ] 245.5 245.5 245.5 245.5
Power Loss [ W ] 26.3 39.5 52.7 65.8
Resistance (Line toLine) [ Ω ] 10.39 15.59 20.78 25.98
Inductance (Line toLine) [ mH ] 3.95 5.93

7.91

9.89
Force Constant (Kf) [ N/Arms ] 19.00 28.46 38.00 47.46
Back EMF Constant (Ke) [ V/(m/sec)] 6.78 10.17 13.56 16.95
Motor Constant [ N/W^½ ] 4.7 7.1 9.5 11.8
Electrical Time Constant [ msec ] 0.38 0.38 0.38 0.38
POLE Pitch [ mm ] 24.0 24.0 24.0 24.0
Normal Force [ N ] 0 0 0 0

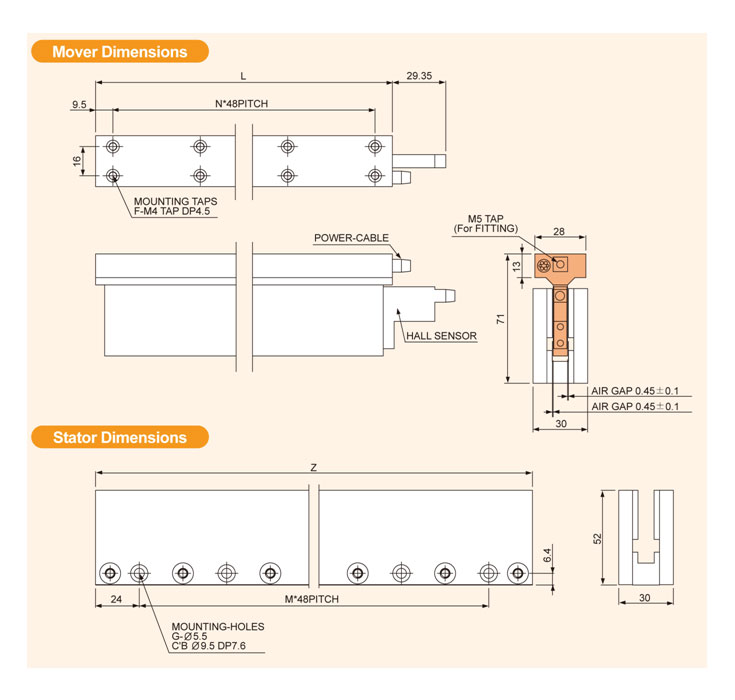

Mover


COIL L N F Weight(kg)
SWL-DMI20 115 2 6 0.25
SWL-DMI30 163 3 8 0.35
SWL-DMI40 211 4 10 0.45
SWL-DMI50 259 5 12 0.56

Stator


MAGNET Z M G Weight(kg)
SWL-DMI96 96 1 2 7.9/m
SWL-DMI144 144 2 3
SWL-DMI192 192 3 4
SWL-DMI240 240 4 5
SWL-DMI288 288 5 6
SWL-DMI336 336 6 7
SWL-DMI384 384 7 8
SWL-DMI432 432 8 9
SWL-DMI480 480 9 10
