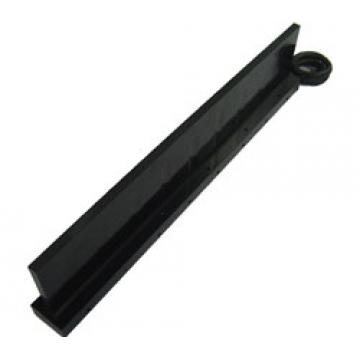

Basic Specifications
Rating Condition : Continuous Voltage Endurance : AC1500V for 1 Min. Insulation Resistance : DC500V, 10M Operating Temperature : 10~40℃ Humidity : 20~80% Coil Insulation Class : F Class (155℃) Hall Effect Device : Optional Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier Air cooling available at no extra cost
Performance Specifications
Model Unit SWL-DE20 SWL-DE30 SWL-DE40 SWL-DE50 Continuous Force [ N ] 300.9 610.9 902.8 1230.8 Max. Force [ N ] 902.8 1805.6 2708.5 3611.3 Continuous Current [ Arms ] 13.9 13.9 13.9 13.9 Max. Current [ Arms ] 41.6 41.6 41.6 41.6 Electrical Power [ W ] 2625.293 2625.293 2625.293 2625.293 Power Loss [ W ] 150.6 301.2 451.7 602.3 Resistance (Line toLine) [ Ω ] 0.52 1.05 1.57 2.09 Inductance (Line toLine) [ mH ] 1.92 3.84 5.75 7.67 Force Constant (Kf) [ N/Arms ] 21.65 43.95 64.95 88.55 Back EMF Constant (Ke) [ V/(m/sec)] 7.29 14.58 21.87 29.16 Motor Constant [ N/W^½ ] 17.6 35.2 52.9 70.5 Electrical Time Constant [ msec ] 3.69 3.66 3.66 3.67 POLE Pitch [ mm ] 84.0 84.0 84.0 84.0 Normal Force [ N ] 0 0 0 0

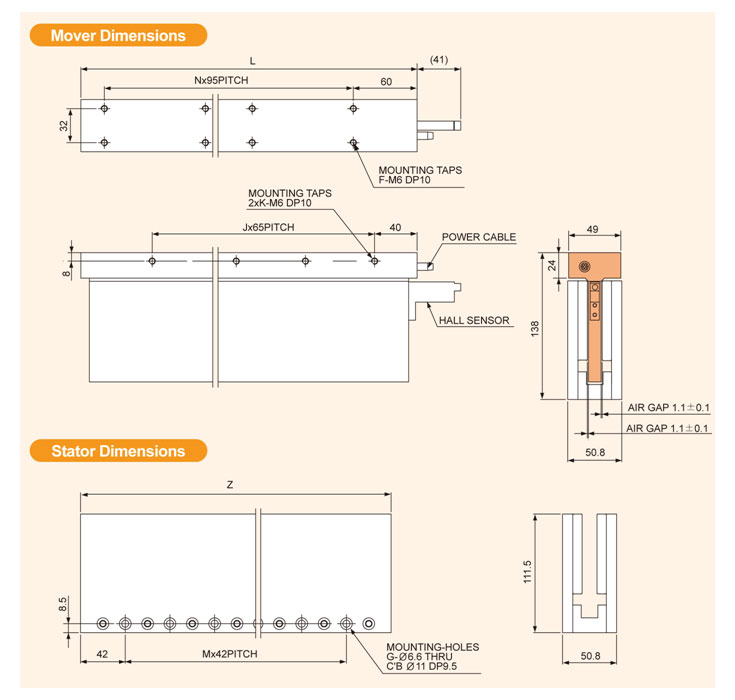

Mover
COIL L N F J Weight(kg) SWL-DE20 199 1 4 2 1.80 SWL-DE30 367 3 8 4 3.50 SWL-DE40 535 4 10 7 4.70 SWL-DE50 703 6 14 10 6.30
Stator
MAGNET Z M G Weight(kg) SWL-DE168 168 2 3 29.2/m SWL-DE205 252 4 5 SWL-DE336 336 6 7 SWL-DE420 420 8 9 SWL-DE504 504 10 11
