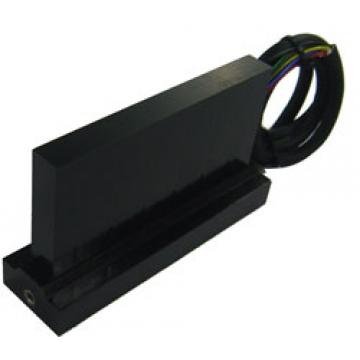

Basic Specifications

Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier
Air cooling available at no extra cost

Performance Specifications

Model	Unit	SWL-DS20	SWL-DS30	SWL-DS40	SWL-DS50
Continuous Force	[ N ]	45.2	67.8	90.5	113.1
Max. Force	[ N ]	135.7	203.5	271.4	339.2
Continuous Current	[ Arms ]	1.96	1.96	1.96	1.96
Max. Current	[ Arms ]	5.9	5.9	5.9	5.9
Electrical Power	[ W ]	370.2	370.2	370.2	370.2
Power Loss	[ W ]	48.5	72.9	97.3	121.8
Resistance (Line toLine)	[ Ω ]	8.41	12.65	16.89	21.13
Inductance (Line toLine)	[ mH ]	3.74	5.61	7.47	9.34
Force Constant (Kf)	[ N/Arms ]	23.06	34.59	46.17	57.70
Back EMF Constant (Ke)	[ V/(m/sec)]	7.69	11.54	15.38	19.23
Motor Constant	[ N/W^½ ]	7.1	10.6/m	14.1	17.6
Electrical Time Constant	[ msec ]	0.44	0.44	0.44	0.44
POLE Pitch	[ mm ]	24.0	24.0	24.0	24.0
Normal Force	[ N ]	0	0	0	0

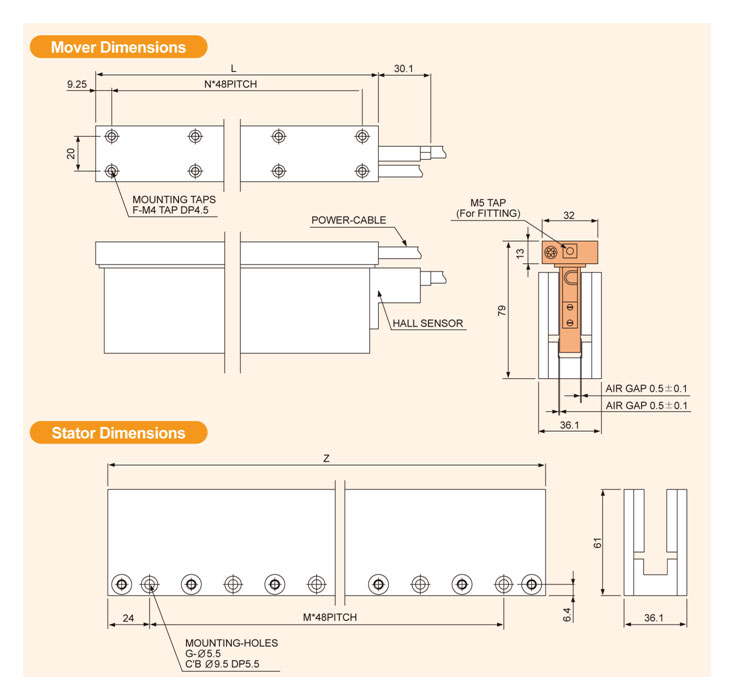

Mover

COIL	L	N	F	Weight(kg)
SWL-DS20	114.5	2	6	0.40
SWL-DS30	162.5	3	8	0.57
SWL-DS40	210.5	4	10	0.73
SWL-DS50	258.5	5	12	0.90

Stator

MAGNET	Z	M	G	Weight(kg)
SWL-DS96	96	1	2	10.6
SWL-DS144	144	2	3
SWL-DS192	192	3	4
SWL-DS240	240	4	5
SWL-DS288	288	5	6
SWL-DS336	336	6	7
SWL-DS384	384	7	8
SWL-DS432	432	8	9
SWL-DS480	480	9	10

Basic Specifications

Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier
Air cooling available at no extra cost

Performance Specifications

Model Unit SWL-DS20 SWL-DS30 SWL-DS40 SWL-DS50

Continuous Force [ N ] 45.2 67.8 90.5 113.1

Max. Force [ N ] 135.7 203.5 271.4 339.2

Continuous Current [ Arms ] 1.96 1.96 1.96 1.96

Max. Current [ Arms ] 5.9 5.9 5.9 5.9

Electrical Power [ W ] 370.2 370.2 370.2 370.2

Power Loss [ W ] 48.5 72.9 97.3 121.8

Resistance (Line toLine) [ Ω ] 8.41 12.65 16.89 21.13

Inductance (Line toLine) [ mH ] 3.74 5.61 7.47 9.34

Force Constant (Kf) [ N/Arms ] 23.06 34.59 46.17 57.70

Back EMF Constant (Ke) [ V/(m/sec)] 7.69 11.54 15.38 19.23

Motor Constant [ N/W^½ ] 7.1 10.6/m 14.1 17.6

Electrical Time Constant [ msec ] 0.44 0.44 0.44 0.44

POLE Pitch [ mm ] 24.0 24.0 24.0 24.0

Normal Force [ N ] 0 0 0 0

Mover

COIL L N F Weight(kg)

SWL-DS20 114.5 2 6 0.40

SWL-DS30 162.5 3 8 0.57

SWL-DS40 210.5 4 10 0.73

SWL-DS50 258.5 5 12 0.90

Stator

MAGNET Z M G Weight(kg)

SWL-DS96 96 1 2 10.6

SWL-DS144 144 2 3

SWL-DS192 192 3 4

SWL-DS240 240 4 5

SWL-DS288 288 5 6

SWL-DS336 336 6 7

SWL-DS384 384 7 8

SWL-DS432 432 8 9

SWL-DS480 480 9 10
