Basic Specifications Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier
Performance Specifications
Model Unit SWL-PL10C SWL-PL20C SWL-PL30C SWL-PL40C Continuous Force [ N ] 162.6 319.3 480.5 639.3 Max. Force [ N ] 487.8 957.9 1441.5 1917.9 Continuous Current [ Arms ] 6.4 6.4 6.4 6.4 Max. Current [ Arms ] 19.2 19.2 19.2 19.2 Electrical Power [ W ] 1208.8 1208.8 1208.8 1208.8 Power Loss [ W ] 72.5 145.0 217.5 290.0 Resistance (Line toLine) [ Ω ] 1.18 2.36 3.54 4.72 Inductance (Line toLine) [ mH ] 7.59 15.08 22.59 30.03 Force Constant (Kf) [ N/Arms ] 25.41 49.89 75.08 99.89 Back EMF Constant (Ke) [ V/(m/sec)] 8.40 16.60 24.88 33.13 Motor Constant [ N/W^½ ] 14.0 27.6 41.5 55.2 Electrical Time Constant [ msec ] 6.43 6.39 6.38 6.36 POLE Pitch [ mm ] 42.0 42.0 42.0 42.0 Normal Force [ N ] 690 1380 2070 2760

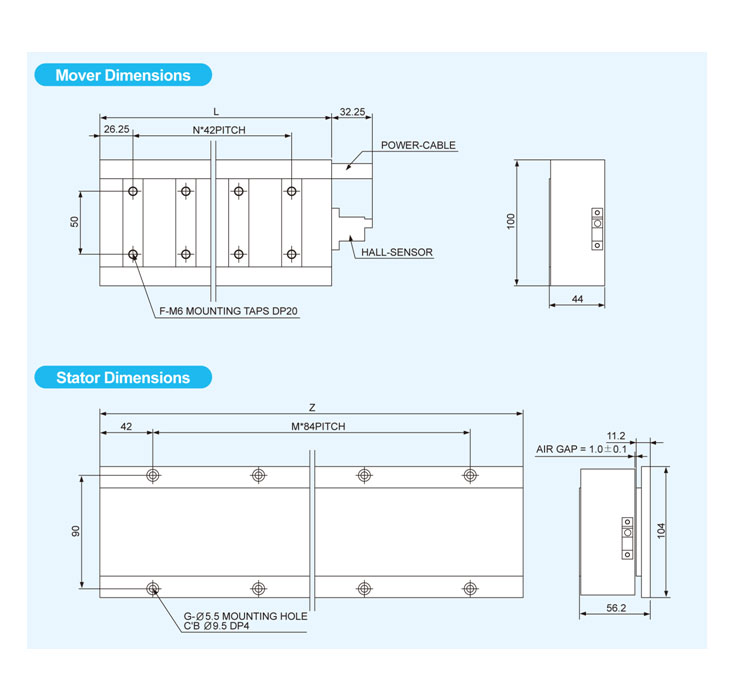

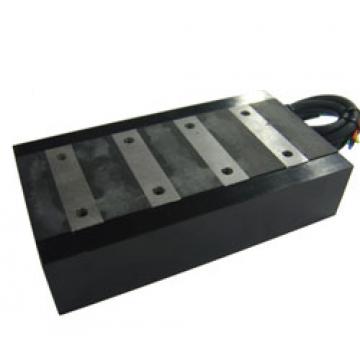

Mover
COIL L N F Weight(kg) SWL-PL10C 100 1 4 2.47 SWL-PL20C 184 3 8 4.27 SWL-PL30C 268 5 12 6.07 SWL-PL40C 352 7 16 7.87 Stator
MAGNET Z M G Weight(kg) SWL-PL168 168 1 4 6.9 SWL-PL252 252 2 6 SWL-PL336 336 3 8 SWL-PL420 420 4 10 SWL-PL504 504 5 12 SWL-PL588 588 6 14
