Basic Specifications Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless AmplifierPerformance Specifications
Model Unit SWL-PS10C SWL-PS20C SWL-PS30C SWL-PS40C Continuous Force [ N ] 42.1 84.5 125.1 166.7 Max. Force [ N ] 126.3 253.5 375.3 500.1 Continuous Current [ Arms ] 2 2 2 2 Max. Current [ Arms ] 6.0 6.0 6.0 6.0 Electrical Power [ W ] 377.7 377.7 377.7 377.7 Power Loss [ W ] 23.2 45.8 68.4 91.5 Resistance (Line toLine) [ Ω ] 3.86 7.63 11.40 15.25 Inductance (Line toLine) [ mH ] 13.15 26.89 40.36 53.80 Force Constant (Kf) [ N/Arms ] 21.05 42.25 62.55 83.35 Back EMF Constant (Ke) [ V/(m/sec)] 7.12 14.14 21.04 27.97 Motor Constant [ N/W^½ ] 6.5 13.0 19.3 25.7 Electrical Time Constant [ msec ] 3.41 3.52 3.54 3.53 POLE Pitch [ mm ] 24.0 24.0 24.0 24.0 Normal Force [ N ] 210 410 610 810

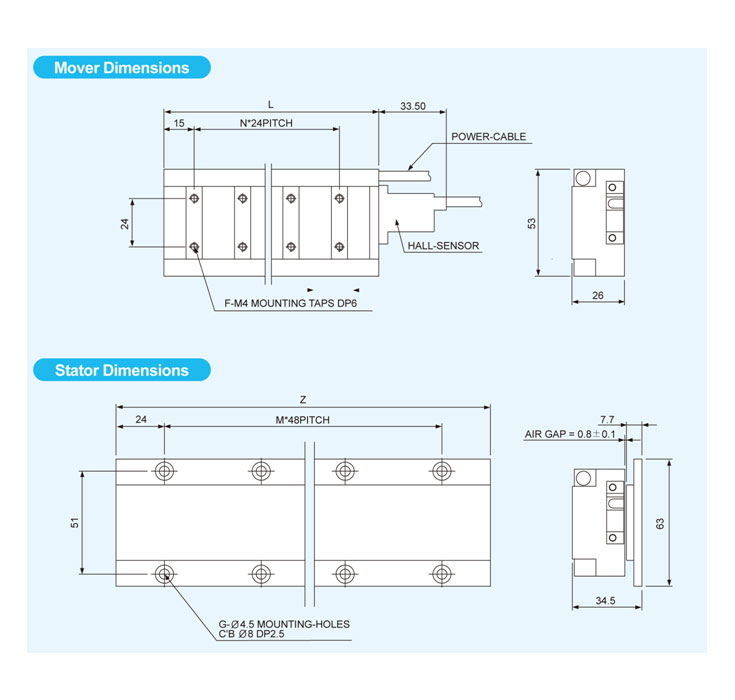

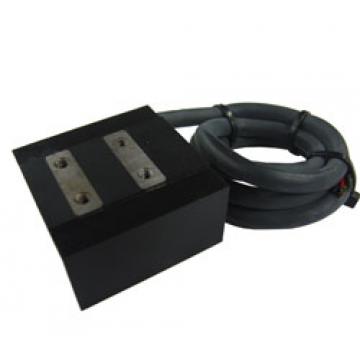

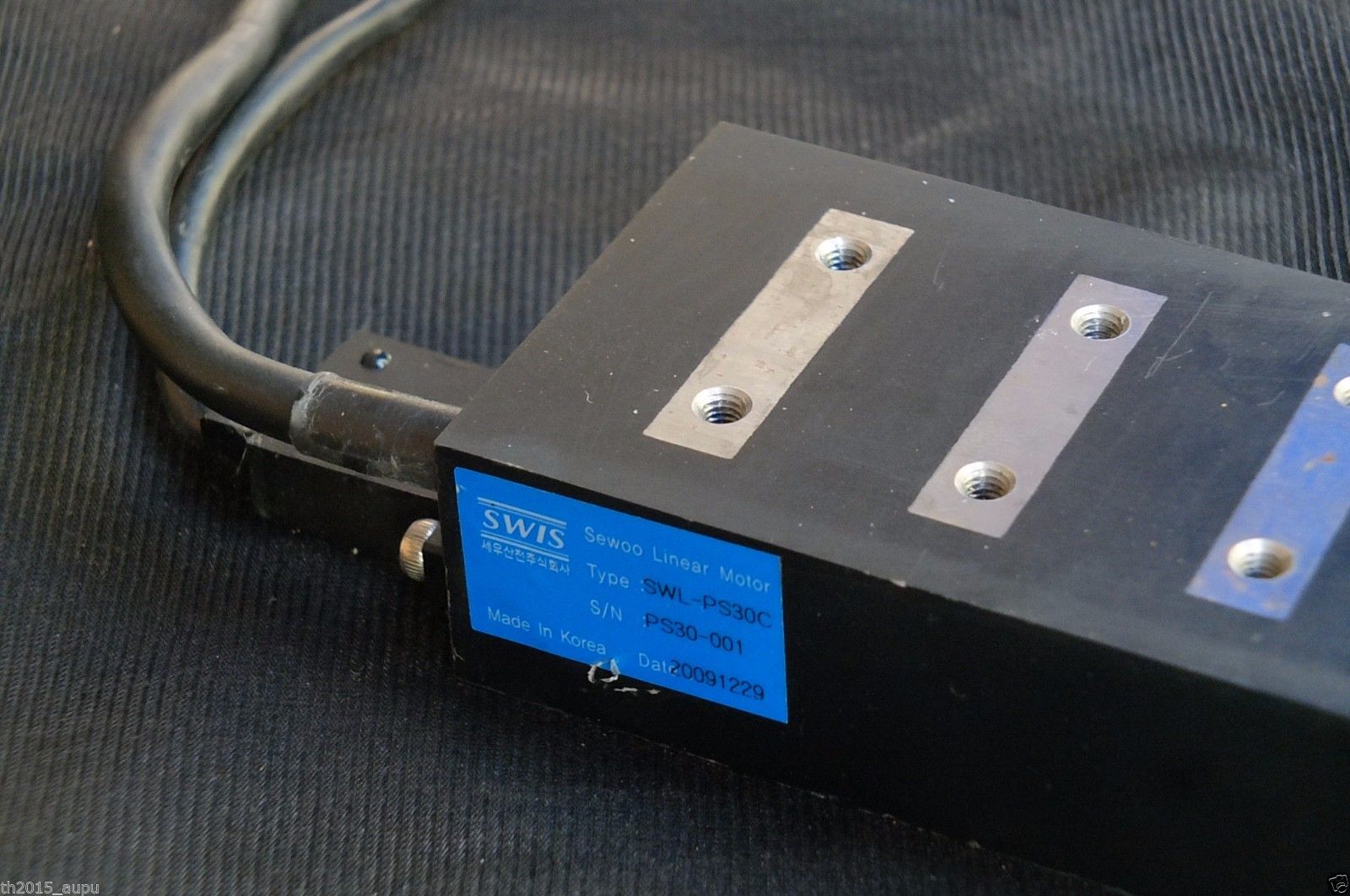

Mover
COIL L N F Weight(kg) SWL-PS10C 58.5 1 4 0.38 SWL-PS20C 106.5 3 8 0.69 SWL-PS30C 154.5 5 12 1.00 SWL-PS40C 202.5 7 16 1.31 Stator
MAGNET Z M G Weight(kg) SWL-PS96 96 1 4 2.4 SWL-PS144 144 2 6 SWL-PS192 192 3 8 SWL-PS240 240 4 10 SWL-PS288 288 5 12 SWL-PS336 336 6 14 SWL-PS384 384 7 16 SWL-PS432 432 8 18 SWL-PS480 180 9 20
