Basic Specifications Rating Condition : Continuous
Voltage Endurance : AC1500V for 1 Min.
Insulation Resistance : DC500V, 10M
Operating Temperature : 10~40℃
Humidity : 20~80%
Coil Insulation Class : F Class (155℃)
Hall Effect Device : Optional
Power Supply Requirement : Trapezoidal or Sinusoidal Signal 3-phase Brushless Amplifier
Performance Specifications
Model Unit SWL-PM10C SWL-PM20C SWL-PM30C SWL-PM40C Continuous Force [ N ] 78.3 157.4 236.2 315.3 Max. Force [ N ] 234.9 472.2 708.6 945.9 Continuous Current [ Arms ] 3.8 3.8 3.8 3.8 Max. Current [ Arms ] 11.4 11.4 11.4 11.4 Electrical Power [ W ] 717.7 717.7 717.7 717.7 Power Loss [ W ] 35.3 71.0 108.9 144.7 Resistance (Line toLine) [ Ω ] 1.63 3.28 5.03 6.68 Inductance (Line toLine) [ mH ] 7.68 15.38 23.01 30.65 Force Constant (Kf) [ N/Arms ] 20.61 41.42 62.16 82.97 Back EMF Constant (Ke) [ V/(m/sec)] 7.01 13.95 20.80 27.68 Motor Constant [ N/W^½ ] 8.8 17.6 26.5 35.3 Electrical Time Constant [ msec ] 4.71 4.69 4.57 4.59 POLE Pitch [ mm ] 30.0 30.0 30.0 30.0 Normal Force [ N ] 390 770 1160 1540

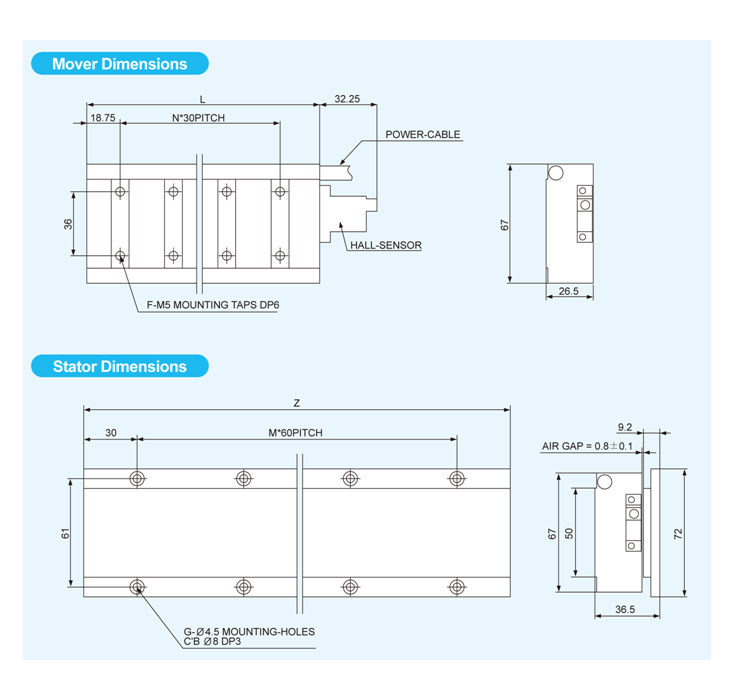

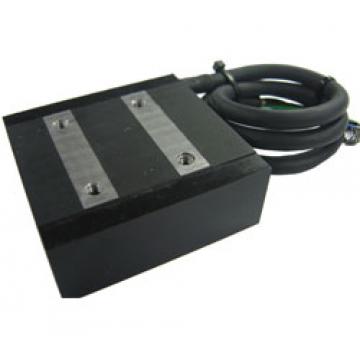

Mover
COIL L N F Weight(kg) SWL-PM10C 71 1 4 0.63 SWL-PM20C 131 3 8 1.18 SWL-PM30C 191 5 12 1.73 SWL-PM40C 251 7 16 2.27 Stator
MAGNET Z M G Weight(kg) SWL-PM120 120 1 4 3.6 SWL-PM180 180 2 6 SWL-PM240 240 3 8 SWL-PM300 300 4 10 SWL-PM360 360 5 12 SWL-PM420 420 6 14 SWL-PM480 480 7 16 SWL-PM540 540 8 18 SWL-PM600 600 9 20
