YPE
Frequency V.P.M. Linear Force Measured Air Consumption / Minute Noise Level
2 Bar 29 PSI
4 Bar 58 PSI
6 Bar 87 PSI
2 Bar N
29 PSI lbs
4 Bar N
58 PSI lbs
6 Bar N
87 PSI lbs
2 Bar litr
29 PSI CFM
4 Bar litr
58 PSI CFM
6 Bar litr
87 PSI CFM
A** dB
A*** dB

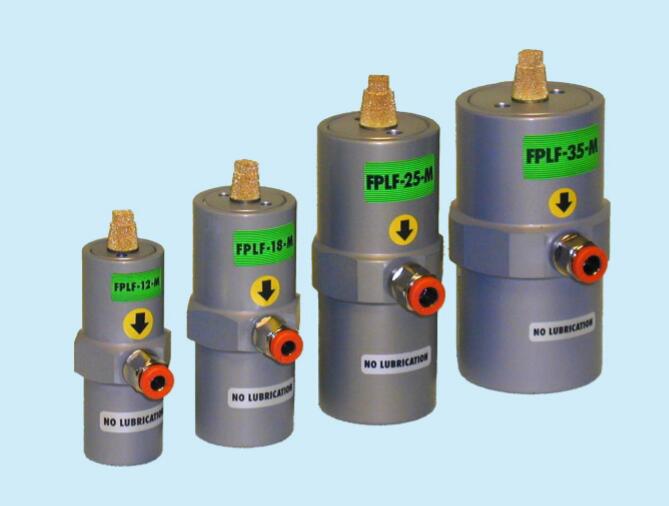

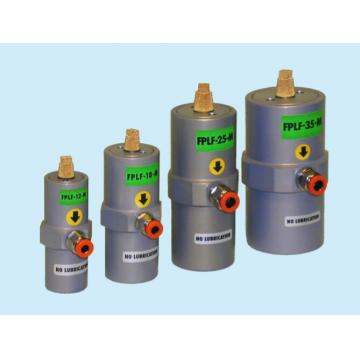

FPLF-12-XS 6000 9000 11500 22 4.8 48 10.6 68 15 0.8 0.03 6 0.21 15 0.53 60-64 N/A
FPLF-12-S 6200 7800 9300 34 7.7 70 16 92 21 0.8 0.03 7.5 0.26 25 0.88 57-61 N/A
FPLF-12-M 5000 6000 6700 37 7.7 58 13 74 17 0.5 0.02 4 0.14 19 0.67 57-61 N/A
FPLF-12-L 4000 4800 5400 32 7.2 58 13 81 18 1 0.04 3 0.11 20 0.71 58-60 N/A
FPLF-18-S 5000 6400 7700 66 15.0 134 30 187 42 5 0.18 33 1.16 57 2.00 62-71 N/A
FPLF-18-M 4000 5000 5900 68 15.0 134 30 188 42 4 0.14 28 1.00 52 1.84 61-67 N/A
FPLF-18-L 3100 4000 4600 64 14.0 150 34 206 46 5 0.18 23 0.81 46 1.62 61-68 N/A
FPLF-25-S 3600 4300 5500 126 28 270 61 416 94 13 0.46 54 1.91 93 3.28 70-75 61-67
FPLF-25-M 3000 3800 4200 142 32 364 82 504 113 23 0.81 50 1.76 87 3.07 73-75 62-66
FPLF-25-L 2400 3100 3700 186 42 392 88 594 134 18 0.64 62 2.19 93 3.28 72-75 60-65
FPLF-35-S 3800 4700 5800 294 66 668 150 1038 234 23 0.81 101 3.56 162 5.72 72-77 71-73
FPLF-35-M 3000 4000 4600 248 56 778 175 1080 243 24 0.84 83 2.93 141 4.98 74-78 70-73
FPLF-35-L 2400 3100 3600 282 63 680 153 1066 240 38 1.34 89 3.14 135 4.77 74-78 68-74
FPLF-50-M* 1850 2300 2800 490 110 970 218 1600 360 48 1.67 100 3.48 190 6.61 70-77 -
FPLF-60-M* 1950 2400 2700 610 137 1400 315 2170 489 90 3.13 160 5.57 270 9.39 73-79 -
FPLF-95-M* 1800 2400 2800 1500 338 2620 590 4270 962 170 5.91 320 11.13 450 15.65 85-92 -
