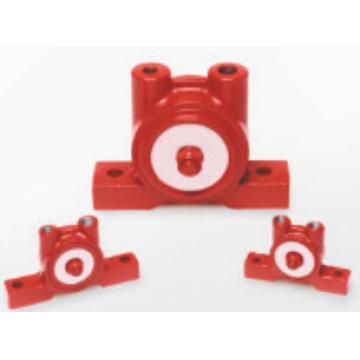

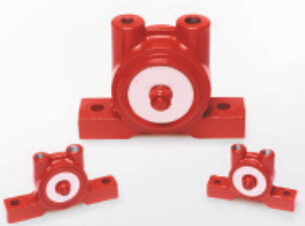

TBM-190振动器
prev zoom next

TBM-190振动器

  • 商品货号:ECS000939
  • 商品库存: 1
  • 商品重量:0克
  • 上架时间:2016-12-07
  • 商品点击数:1538
  • 购买数量: 商品总价:

商品描述

商品属性

商品标签

相关商品

TBM Turbine Vibrator Series For Light to Heavy Applications Features • Low noise and adjustable speed • Maintenance free — never needs lubrication, even for continuous duty operation • Ideal for pharmaceutical and food industries — non-lubricated air supply means no oily exhaust • Threaded exhaust for muffler or closed system allows piping off of air exhaust in closed, sanitized systems • Available in a wide range of sizes • Ideal for fast moving parts or materials in small feeding tracks to large bins • Malleable iron castings on most models

60 psi 80 psi Max Material Bin Wall Weight Speed Speed Force in Bin▲ Thickness Model lb kg vpm cfm vpm cfm lbs N dB● lb kg in mm ◆TBM-60 7 oz .198 12,000 4 -- -- 20 89 66 200 91 1 /32 - 1 /16 0.8 - 1.6 ◆TBM-130 10 oz .283 8,000 4.5 10,500 5.5 75 334 67 750 342 1 /16 - 1 /8 1.6 - 3.2 TBM-160 2 .9 9,500 7 11,000 8 160 712 70 1,600 726 3 /16 - 5 /16 4.7 - 7.9 TBM-190 3 1.4 5,500 7.5 7,200 8.5 270 1,201 71 2,700 1,225 3 /16 - 3 /8 4.7 - 9.5 TBM-250 5 2.3 5,200 8 7,200 9 480 2,136 72 4,800 2,177 5 /16 - 7 /16 7.9 - 11.1 TBM-320 8.5 3.9 5,500 9 6,800 10 600 2,669 70 6,000 2,722 3 /8 - 7 /16 9.5 - 11.1 TBM-380 13 5.8 4,500 16 5,000 18 670 2,981 74 6,700 3,039 7 /16 - 1 /2 11.1 - 12.7 TBM-440 17 7.7 4,300 18 4,800 21 700 3,114 76 7,000 3,175 1 /2 12.7 TBM-510 18 8.2 4,000 18 4,500 21 900 4,004 77 9,000 4,082 1 /2 12.7 TBM-570 25 11.3 3,600 21 4,000 26 1,050 4,671 83 10,500 4,763 1 /2 12.7 Data obtained on laboratory test block. Frequency and force will decrease on less rigid mount. Data subject to design changes. ◆ Aluminum construction. Balance of models have malleable iron housings. ● Decibel from A-scale at 1 meter and 80 psi N = Centrifugal force in Newtons ▲ Rule of thumb for sizing = 1 lb (.4536 kg) Vibrator Force for each 10 lb (4.536 kg) of bin content at 80 psi or 9.8 N (5.5 bar) Vibrator Force for each 10 kg of bin content at 80 psi. Note: For low-pressure applications, or to operate outside listed parameters, please contact Syntron Material Handling for recommendations. S

Dimensions Inlet Exhaust A B C D E G H■ J★ K★ L Model in mm in mm in mm in mm in mm in mm in mm in -NPT in -NPT in mm TBM-60 3 7 /8 98 3 /4 19 2 3 /8 60 3 76 5 /8 16 11 /4 32 1 /4 6 1 /8 1 /8 1 3 /16 30 TBM-130 4 7 /8 124 7 /8 22 2 3 /4 70 4 102 3 /4 19 1 7 /16 37 3 /8 10 1 /8 1 /4 1 7 /8 48 TBM-160 5 3 /16 139 11 /4 32 3 7 /16 81 4 102 7 /8 22 1 7 /8 48 3 /8 10 1 /4 3 /8 2 3 /4 70 TBM-190 5 3 /16 139 11 /4 32 3 7 /16 81 4 102 7 /8 22 1 7 /8 48 3 /8 10 1 /4 3 /8 3 1 /16 78 TBM-250 6 3 /4 171 1 5 /16 33 3 15/16 100 5 127 7 /8 22 2 1 /8 54 1 /2 12 1 /4 3 /8 3 1 /8 79 TBM-320 6 1 /2 165 1 5 /8 41 4 7 /8 124 5 127 11 /8 29 2 3 /4 70 1 /2 12 3 /8 1 /2 4 102 TBM-380 7 7 /8 200 1 7 /8 48 5 7 /16 138 6 152 11 /8 29 2 7 /8 73 5 /8 16 3 /8 1 /2 4 5 /8 117 TBM-440 8 13/16 224 2 3 /16 56 5 3 /4 146 7 178 11 /4 32 3 1 /8 79 5 /8 16 1 /2 3 /4 4 3 /4 121 TBM-510 8 13/16 224 2 3 /16 56 5 3 /4 146 7 178 11 /4 32 3 1 /8 79 5 /8 16 1 /2 3 /4 4 3 /4 121 TBM-570 10 1 /16 256 2 7 /8 73 7 178 8 203 3 /4 19 313/16 97 3 /4 19 3 /4 1 5 3 /8 137

FMC【TBM-190】振动器,FMC【TBM-190】气动振动器,FMC【TBM-190】仓壁振动器,FMC【TBM-190】空气振动器,FMC【TBM-190】涡轮振动器,FMC【TBM-190】转轮振动器,进口气动振动器
