TAM-190气动振动器

商品货号：ECS000935
商品库存： 1
商品重量：0克
上架时间：2016-12-07
商品点击数：2135

购买数量： 商品总价：

商品描述

商品属性

商品标签

相关商品

FMC【TAM-190】振动器,FMC【TAM-190】气动振动器,FMC【TAM-190】仓壁振动器,FMC【TAM-190】球形振动器,FMC【TAM-190】钢球振动器,FMC【TAM-190】钢珠给料机,进口气动振动器

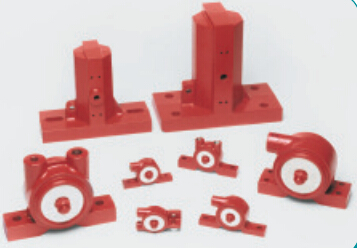

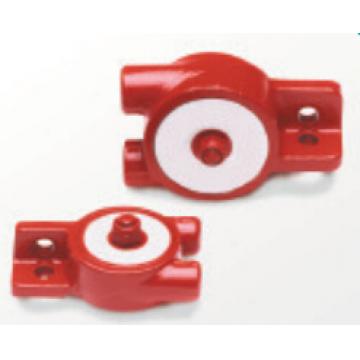

TAM Turbine Vibrator Series

For Small to Medium Applications

Features

I Low noise, 70 dB or less G G

I Adjustable speed

I Maintenance free; never needs lubrication, even for continuous

duty operation

I Versatile mounting design

I Threaded exhaust for muffler or closed system

I Ideal for use in screening, sizing, settling, aiding flow in parts

feeders and for moving powdered materials through hoppers and

chutes; also unjamming caps, parts and cans

60 psi 80 psi Max Material Bin Wall Weight Speed Speed Force in Bin▲ Thickness Model lb kg vpm cfm vpm cfm lbs N dB● lb kg in mm ◆ TAM-100 5 oz .142 12,000 3.5 -- -- 20 89 66 200 91 1/32 - 1/16 0.8 - 1.6 ◆ TAM-130 9 oz .255 8,000 4.5 10,500 5.5 75 334 67 750 340 1/16 - 3/16 1.6 - 4.7 ◆ TAM-160 12 oz .340 8,500 5 9,000 7 160 712 67 1600 726 3/16 - 5/16 4.7 - 7.9 ◆ TAM-190 15 oz .425 8,500 5 10,000 7 250 1112 70 2500 1134 3/16 - 3/8 4.7 - 9.5 Data obtained on laboratory test block. Frequency and force will decrease on less rigid mount. Data subject to design changes. ◆ Aluminum construction. Balance of models have malleable iron housings. ● Decibel from A-scale at 1 meter and 80 psi N = Centrifugal force in Newtons ▲ Rule of thumb for sizing = 1 lb (.4536 kg) Vibrator Force for each 10 lb (4.536 kg) of bin content at 80 psi or 9.8 N (5.5 bar) Vibrator Force for each 10 kg of bin content at 80 psi. Note: For low-pressure applications, or to operate outside listed parameters, please contact Syntron Material Handling for recommendations. Dimensions A B C E F G H■ J,K★ L N P Model in mm in mm in mm in mm in mm in mm in mm in -NPT in mm in mm in mm TAM-100 3 1 /4 83 1 25 17 /8 37 5 /16 16 1 1 /4 32 1 1 /4 32 5 /16 8 1 /8 1 5 /8 41 1 /2 12 1 3 /8 35 TAM-130 3 3 /4 95 1 3 /16 30 2 1 /4 57 5 /16 16 1 3 /4 44 1 1 /4 32 3 /8 10 1 /8 1 7 /8 48 9 /16 14 1 9 /16 40 TAM-160 4 1 /8 105 11 /4 32 2 9 /16 65 5 /16 16 1 3 /4 44 1 5 /8 41 3 /8 10 1 /4 2 51 11/16 17 113/16 46 TAM-190 4 1 /8 105 11 /4 32 2 9 /16 65 5 /16 16 1 3 /4 44 1 5 /8 41 3 /8 10 1 /4 2 51 11/16 17 113/16 46 ■ Bolt size ★ NPT pipe tap size
