TB-380振动器

商品货号：ECS000952
商品库存： 1
商品重量：0克
上架时间：2016-12-07
商品点击数：2236

购买数量： 商品总价：

商品描述

商品属性

商品标签

相关商品

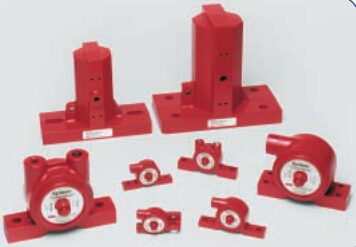

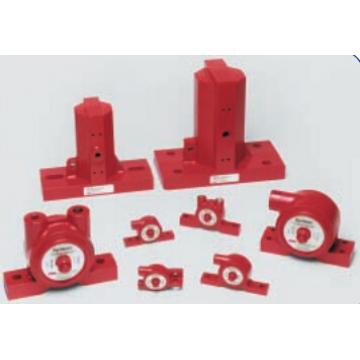

TB Turbine Vibrator Series For Light to Heavy Applications Features • Low noise and adjustable speed • Maintenance free; never needs lubrication, even for continuous duty operation • Built-in muffler for quiet operation • Ideal for use in air material conveying systems and medium size batch hoppers • Models TB-2000 and TB-5000 are lightweight solutions for large bins, hoppers and chutes and are ideal for packing table and screen applications • Malleable iron castings on most models

60 psi 80 psi Max Material Bin Wall Weight Speed Speed Force in Bin▲ Thickness Model lb kg vpm cfm vpm cfm lbs N dB● lb kg in mm ◆TB-100 7 oz .198 12,000 4 -- -- 20 89 66 200 91 1 /32 - 1 /16 0.8 - 1.6 ◆TB-130 11 oz .312 8,000 4.5 10,500 5.5 75 334 67 750 342 1 /32 - 1 /8 0.8 - 3.2 TB-160 2 .9 10,000 7 12,000 8 160 712 70 1,600 726 3 /16 - 5 /16 4.7 - 7.9 TB-190 3 1.4 4,200 7.5 7,200 9 270 1,201 70 2,700 1,225 3 /16 - 3 /8 4.7 - 9.5 TB-250 4 1.8 5,500 9 7,200 10.5 500 2,225 70 5,000 2,268 5 /16 - 7 /16 7.9 - 11.1 TB-320 6.5 2.9 5,200 9 6,800 11 600 2,669 69 7,000 3,175 7 /16 - 1 /2 11.1 - 12.7 TB-380 11.5 5.2 4,600 16 5,200 17 725 3,226 72 7,250 3,289 7 /16 - 1 /2 11.1 - 12.7 TB-510 15 6.8 4,000 18 4,500 21 900 4,004 77 9,000 4,082 1 /2 12.7 TB-2000 23 10.5 4,000 30 6,000 35 2,000 8,900 78 20,000 9,072 1 /2 - 3 /4 12.7 - 19 TB-5000 48 21.8 4,000 35 6,000 40 5,000 22,245 75 50,000 22,680 3 /4 - 1 1 /4 19 - 32 Data obtained on laboratory test block. Frequency and force will decrease on less rigid mount. Data subject to design changes. ◆ Aluminum construction. Balance of models have malleable iron housings. ● Decibel from A-scale at 1 meter and 80 psi N = Centrifugal force in Newtons ▲ Rule of thumb for sizing = 1 lb (.4536 kg) Vibrator Force for each 10 lb (4.536 kg) of bin content at 80 psi. or 9.8 N (5.5 bar) Vibrator Force for each 10 kg of bin content at 80 psi. Note: For low-pressure applications, or to operate outside listed parameters, please contact Syntron Material Handling for recommendations. S

FMC【TB-380】振动器,FMC【TB-380】气动振动器,FMC【TB-380】仓壁振动器,FMC【TB-380】空气振动器,FMC【TB-380】涡轮振动器,FMC【TB-380】转轮振动器,进口气动振动器

A B C D E F H■ J★ L M Model in mm in mm in mm in mm in mm in mm in mm in -NPT in mm in mm TB-100 3 7 /8 98 3 /4 19 2 51 3 76 5 /16 8 1 5 /16 33 1 /4 6 1 /8 1 7 /16 37 111/16 43 TB-130 4 7 /8 124 15/16 24 2 5 /16 59 4 102 5 /16 8 11 /2 38 3 /8 10 1 /8 1 7 /8 48 115/16 49 TB-160 5 1 /16 129 1 5 /16 33 2 5 /16 59 4 102 5 /16 8 17 /8 48 3 /8 10 1 /4 2 3 /4 70 2 1 /2 64 TB-190 5 1 /16 129 1 5 /16 33 3 5 /8 92 4 102 9 /16 14 17 /8 48 3 /8 10 1 /4 2 13/16 71 2 1 /2 64 TB-250 5 3 /8 137 11 /2 38 3 1 /2 89 4 102 9 /16 14 2 1 /4 57 1 /2 12 1 /4 3 1 /16 78 2 15/16 87 TB-320 5 5 /16 135 11 /2 38 4 5 /8 117 4 102 3 /4 19 2 1 /4 57 1 /2 12 3 /8 4 102 4 1 /8 105 TB-380 6 5 /8 168 2 1 /8 54 4 7 /8 124 51 /2 x 11 /4 1 25 2 7 /8 73 3 /8 10 3 /8 4 3 /8 111 4 102 140 x 32 TB-510 6 3 /4 171 2 5 /8 67 5 3 /8 137 5 1 /2 x 1 3 /4 1 25 2 7 /8 73 3 /8 10 1 /2 4 3 /4 121 4 5 /8 118 140 x 32 TB-2000 7 5 /8 194 2 51 7 3 /8 187 515/16 151 3 /4 19 5 7 /16 138 5 /8 16 3 /4 7 3 /4 197 -- TB-5000 10 1 /16 256 3 76 9 229 8 203 1 25 6 153 3 /4 19 1 8 5 /8 216 --
