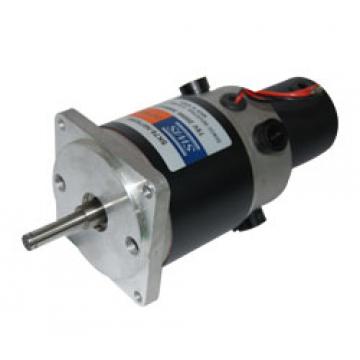

MODEL SK76 N075200 N075300 N075400 N048100 N048200 N024100 Rated Voltage
V 75 48 24 Rated Output
W 200 300 400 100 200 100 Rated Current
A 3.3 4.8 6.5 2.3 4.6 4.9 Rated Speed
r/min 3000 1800 Rated Torque
kgf-cm 6.5 9.3 13.0 3.3 6.5 5.4 Weight
kg 2.1 2.4 2.8 2.1 2.4 2.1 Voltage Constant
v/Krpm 22.6 23.3 23.3 15.2 1.4 1.2 Rotor Inertia
kgㆍm² 0.13×10-3 0.25×10-3 0.34×10-3 0.18×10-3 0.24×10-3 0.24×10-3 Amature Resistance
Ω 1.5 1 1.2 1.1 0.9 0.6 Amature Inductance
mH 1.8 1.1 0.9 1.2 0.9 0.7 Static Friction Torque
kgf.cm 0.5 0.6 0.8 0.5 0.6 0.5 Peak Current At Stall
A 16.0 18.5 26.4 40.0 52.0 46.0 Max. Rotating Speed
rpm 4000 2500 Peak Torque At Stall
kgf.cm 34.4 41.0 58.5 32.0 76.0 55.0 Mechanical Time Constant
ms 5.8 5.0 6.5 9.3 10.0 7.9 Eletrical Time Constant
ms 1.1 1.1 0.8 1.1 1.1 1.1 Insulation Class
class B Dielectrical Strength
AC 1,000V 60Hz 1Min (Leak Current : 2mA) Insulation Resistance
Minimum 10MΩ (DC 500V) Time Rating
Continuous Max.Temperature Rise
℃ 130
