MODEL DG95(초강력형) F012150 F012200 F024150 F024200 F024250 F024300 Rated Voltage
V 12 24 Rated Output
W 150 200 150 200 250 300 Rated Current
A 17.6 23.5 8.9 11.7 14.7 17.9 Rated Speed
r/min 15~1000 Rated Torque
kgf-cm 11.9~300 15.8~300 11.9~200 15.8~300 19.7~300 23.6~300 Weight
kg 4.7 5.3 4.7 5.3 5.6 5.8
MODEL DG95(초강력형) F090150 F090200 F090250 F090300 F090350 F090450 Rated Voltage
V 90 Rated Output
W 150 200 250 300 350 450 Rated Current
A 2.3 3.1 4.0 4.7 5.6 7.1 Rated Speed
r/min 15~1000 Rated Torque
kgf-cm 11.9~300 15.8~300 19.7~300 23.6~300 27.8~300 35.5~300 Weight
kg 4.7 5.1 5.3 5.6 5.8 6.0
MODEL DG95(초강력형) F180150 F180200 F180250 F180300 F180350 F180450 F180500 Rated Voltage
V 180 Rated Output
W 150 200 250 300 350 450 500 Rated Current
A 1.2 1.6 2.0 2.3 2.8 3.6 4.0 Rated Speed
r/min 15~1000 Rated Torque
kgf-cm 11.9~300 15.8~300 19.7~300 23.6~300 27.8~300 35.5~300 39.4~300 Weight
kg 4.4 4.7 5.2 5.3 5.4 5.6 5.8

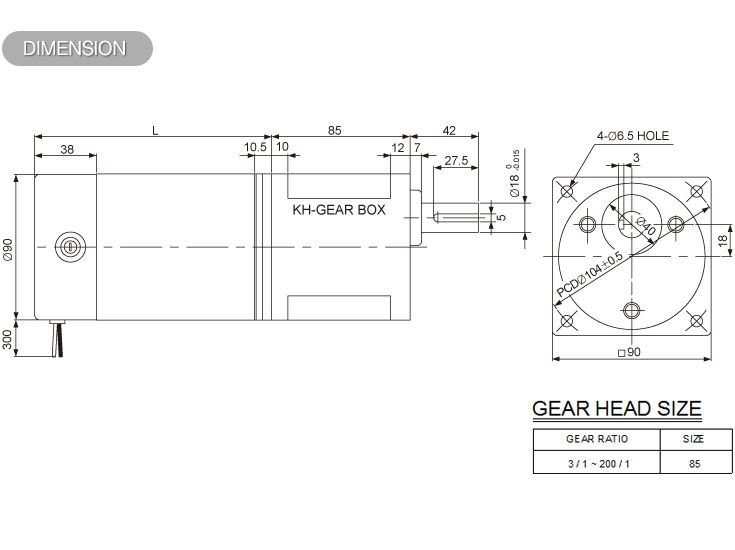

L MODEL 120.5
F180150 145.5
F024150 / F090150 / F180200 163.5
F012150 / F024200 / F090200 / F090250 / F180250 / F180300 / F180350 188.5
F012200 / F024250 / F024300 / F090300 / F090350 / F090450 / F180450 / F180500
