MODEL DD95 F012060 F012090 F012120 F012150 F012200 F024070 F024090 F024120 F024150 F024200 F024250 F024300 Rated Voltage
V 12 24 Rated Output
W 70 90 120 150 200 70 90 120 150 200 250 300 Rated Current
A 7.0 10.6 14.1 17.6 23.5 4.2 5.4 7.0 8.9 11.7 14.7 17.9 Rated Speed
r/min 3000 Rated Torque
kgf-cm 1.9 2.9 3.9 4.9 6.5 2.3 2.9 3.9 4.9 6.5 8.1 9.7 Weight
kg 2.6 2.9 3.0 3.2 3.6 2.6 2.8 3.0 3.1 3.3 3.6 3.8
MODEL DD95 F090100 F090120 F090150 F090200 F090250 F090300 F090350 F090450 F180100 F180120 F180150 F180200 Rated Voltage
V 90 180 Rated Output
W 100 120 150 200 250 300 350 450 100 120 150 200 Rated Current
A 7.0 10.6 14.1 17.6 23.5 4.2 5.4 7.0 8.9 11.7 14.7 17.9 Rated Speed
r/min 3000 Rated Torque
kgf-cm 1.9 2.9 3.9 4.9 6.5 2.3 2.9 3.9 4.9 6.5 8.1 9.7 Weight
kg 2.6 2.9 3.0 3.2 3.6 2.6 2.8 3.0 3.1 3.3 3.6 3.8
MODEL DD95 F180250 F180300 F180350 F180450 F180500 Rated Voltage
V 180 Rated Output
W 250 300 350 450 500 Rated Current
A 2.0 2.3 2.8 3.6 4.0 Rated Speed
r/min 3000 Rated Torque
kgf-cm 8.1 9.7 11.4 14.6 16.2 Weight
kg 3.1 3.4 3.6 3.8 4.0

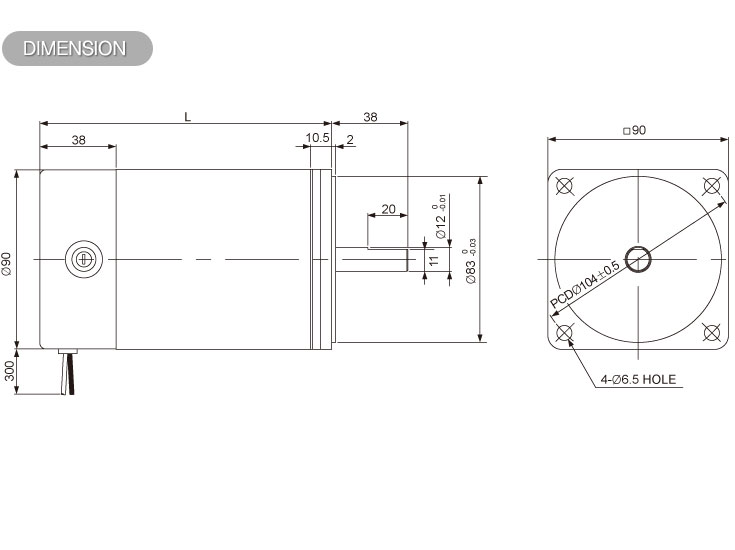

L MODEL 120.5
F012060 / F024070 / F024090 / F090100 / F180100 / F180120 / F180150 145.5
F012090 / F012120 / F024120 / F024150 / F090120 / F090150 / F180200 163.5
F012150 / F024200 / F090200 / F090250 / F180250 / F180300 / F180350 188.5
F012200 / F024250 / F024300 / F090300 / F090350 / F090450 / F180450 / F180500
