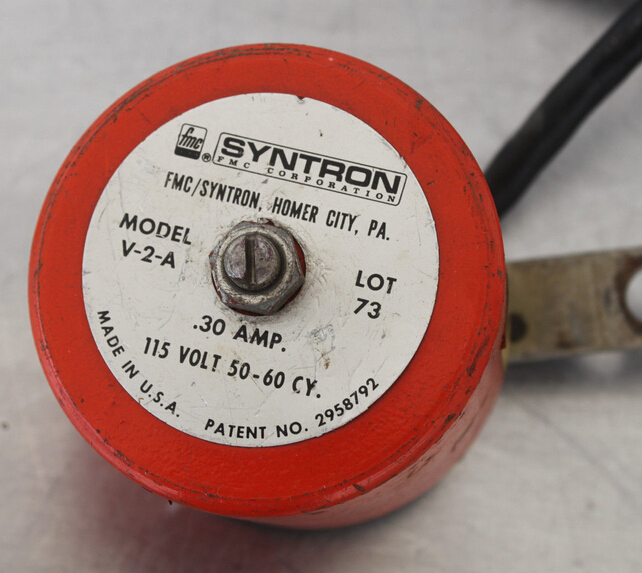

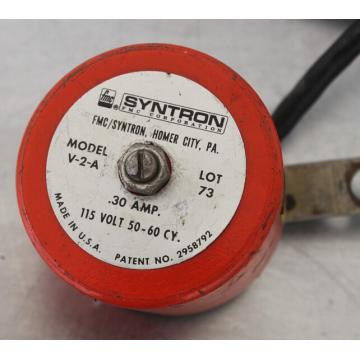

Syntron ® V-2 and V-4 Electromagnetic Vibrators are two of the

smallest industrial vibrators available. These versatile vibrators can be  controlled electrically with a separate control. When these vibrators are

operated without a control, they can be mechanically controlled by  turning an easily accessible adjusting screw. Increased amplitude can be

obtained by using rectified AC power. Flexibility and ease of installation  are common to both models and the Model V-4 is available with a dust- tight case.

Models V-9 and V-20 are compact in size, but at 3600 vpm, they pack enough vibratory “punch” to excel in a wide range of applications. Each

is available with a separate dust-tight case.

Typical applications for the above models include installations on  small bins, handling lightweight materials, or in counting, sorting or packaging operations.

Impact and Cushioned Vibrator Compact Models

Models V-50, V-85 and V-180 are “solid” impact vibrators. These units  use a metal striking block to produce positive impact.

Models V-41, V-51, V-86 and V-181 are “cushioned” impact vibrators,which utilize a rubber striking block to produce positive impact. Their

high power/low noise characteristics make them ideal for use in confined  areas with nearby workers. Physical dimensions and electrical specifica-

tions are identical to the “solid” impact type vibrators. Dust-tight and waterproof construction are standard for both versions.

Open Models

Models V-75 and V-500 feature a power-packed, solid impact, open-type design. They are used on difficult, heavy-duty applications. The V-500 is

one of the largest magnetic vibrators available. Both the V-75 and V-500 are available with a separate dust-tight case.

Self-Contained Models

Models V-9 through V-500 require separate controls unless specifically ordered as self-contained units. Self-contained units include a built-in

rectifier and they always operate at full force. Self-contained units are recommended only where no force adjustment is required. Models V-41

and V-500 are not available as self-contained units.
