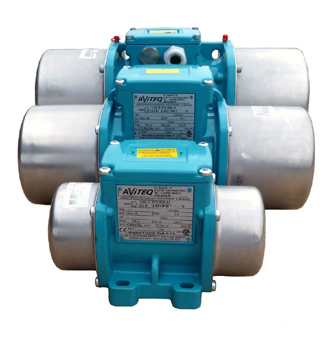

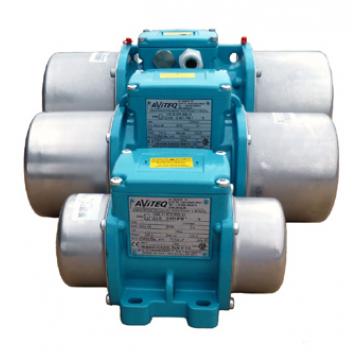

The ViTEQ unbalanced motor is commonly used to drive vibratory feeders and screens. These electric powered drives offer many inherent advantages especially for "brute force" feeders. Brute force feeders are used in applications typically involving surge loading, dump loading and shock loading abuse and these drives can handle any type of load change as well as exteme environments where a belt feeder is easily damaged.
Over 50 sizes to choose fromDeliver 150 up to 27,000 pounds of centrifugal force
230 / 460 Volt, 3 Phase standard. Other Voltages available
Force output is infinitely adjustable from 0 - 100% of rated maximum
Water tight / Dust tight enclosure standard
Available in 3600, 1800, 1200, and 900 RPM
Thrust loaded roller bearings are designed for maximum capacity
Insulation Class F standard. Other insulation classes available
Designed for continuous duty at 100% maximum force output
