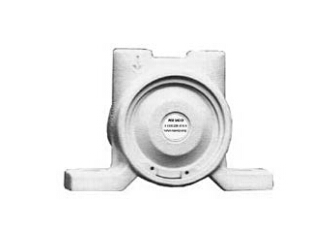

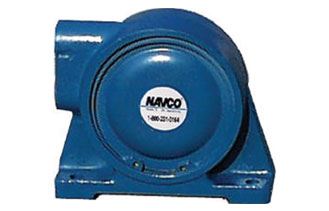

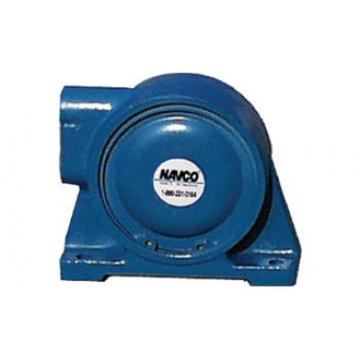

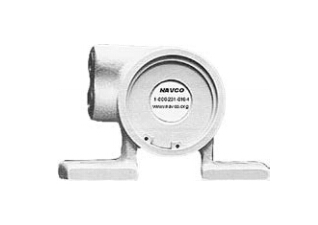

NAVCO,BNS-10,BNS-16,BNS-19,BNS-25,UNS-13,UNS-19, UNS-25,UNS-38,UNS-44,CNS-19,CNS-25,CNS-35 , DNS-41,DNS-51
Vibrator Model A B C D E Port Size NPT Weight (lbs) BNS - 10 3.1 1.9 1.1 - .34 1/8 0.7 BNS - 16 4.0 2.5 1.3 - .41 1/4 1.4 BNS - 19 4.5 2.8 1.5 - .41 1/4 1.9 BNS - 25 5.2 3.2 1.8 - .53 1/4 3.1 UNS - 13 5.2 2.7 1.2 4 .41 1/8 1.2 UNS - 19 5.1 3.4 1.5 4 .41 1/4 2.2 UNS - 25 6.6 3.9 1.8 5 .53 1/4 3.5 UNS - 38 7.9 5.4 2.3 6 .69 3/8 7.6 CNS - 19 5.3 3.4 1.5 4 .41 1/4 2.4 CNS - 25 5.4 4.4 2.1 4 .53 1/4 4.3 CNS - 35 5.4 4.4 2.1 4 .53 1/4 4.6 DNS - 41 6.8 5.7 2.5 5.5 x 1.8 .41 1/2 10.4 DNS - 51 6.8 5.7 2.5 5.5 x 1.8 .41 1/2 10.8
Vibrator Model Unbalance lb-in PSI Required 20 PSI 40 PSI 60 PSI Vertical Horizontal Speed RPM Flow SCFM Force LBS Speed RPM Flow SCFM Force LBS Speed RPM Flow SCFM Force LBS BNS - 10 .0034 5 2 16000 4.3 25 20000 7.0 38 22000 9.0 45 BNS - 16 .020 15 7 9400 4.1 50 13000 6.4 93 14000 8.2 110 BNS - 19 .043 20 10 8600 5.5 89 11000 8.4 150 13000 11 200 BNS - 25 .12 30 15 5700 7.5 110 6900 12 160 8200 16 230 UNS - 13 .0093 5 2 13000 6.5 45 18000 11 84 20000 15 110 UNS - 19 .043 20 10 8700 5.5 92 11000 8.4 160 13000 12 210 UNS - 25 .12 30 15 6300 7.0 140 8400 12 240 9100 16 280 UNS - 38 .52 50 25 4300 12 270 5600 19 470 6000 25 540 CNS - 19 .043 20 10 9100 5.7 100 12000 8.4 170 14000 12 220 CNS - 25 .12 30 15 6300 7.8 130 8100 13 220 9200 18 290 CNS - 35 .24 50 25 5300 7.8 190 6700 13 310 7600 16 390 DNS - 41 .82 55 25 3200 13 240 4000 21 370 4400 27 450 DNS - 51 1.3 60 30 3100 13 350 4000 20 580 4300 27 680
