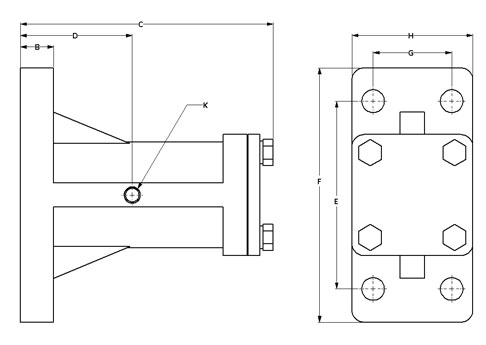

Model*

A1

B

C

D

E

F

G2

H

J

K3

Wt. (lbs)

Wall Thickness

Air Consumption SCFM @ 50 PSI

BH-1

1/2

1/2

3-3/4

1-3/4

3-1/2

4-1/2

*

2

1/4

1/4

3

1/16 - 1/8

3.3

3

BH-1-1/4

1/2

3/4

5-5/8

3

4-1/2

6

*

2-1/2

1/4

1/4

8

1/16 - 1/8

4.2

4

BH-1-5/8

5/8

1

7-1/4

3-3/4

7-1/2

9

*

3-1/4

1/4

1/4

18

3/16 - 1/4

7.5

7.2

BH-2

5/8

1

7-1/4

3-3/4

7-1/2

9

*

3-1/4

1/4

1/4

18

3/16 - 1/4

8.3

8

BH-3

7/8

1-1/2

9-1/2

5

7-3/4

10-1/2

3-1/4

5

3/8

3/8

50

1/4 - 3/8

11.6

11.6

BH-3 -L

7/8

1-1/2

12

6-1/4

7-3/4

10-1/2

3-1/4

5

3/8

3/8

64

1/4 - 3/8

14

14

BH-4

1

1-1/4

11-3/4

5-7/8

12

14-1/2

4

6-1/2

1/2

1/2

105

3/8 - 1/2

18.2

18.2

BH-5

1

2

16-1/2

8-1/2

12

14-1/2

4

7-1/4

1/2

1/2

180

3/8 - 1/2

28

28

BH-6

1-1/2

2

19-1/2

9-7/8

11

14-1/2

7

10-1/8

1/2

1/2

350

3/8 - 1/2

35

35

BH-8

2

2-1/2

22-1/2

11-1/2

13

16-1/2

8-1/2

12-1/4

3/4

3/4

650

1/2 - 3/4

41

39

1. Mounting Bolt Diameter 2. * Indicates Two Bolt Mount 3. Air Inlet Connection(NPT)
