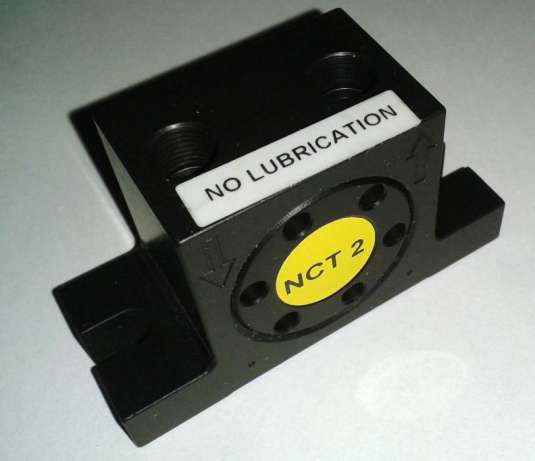

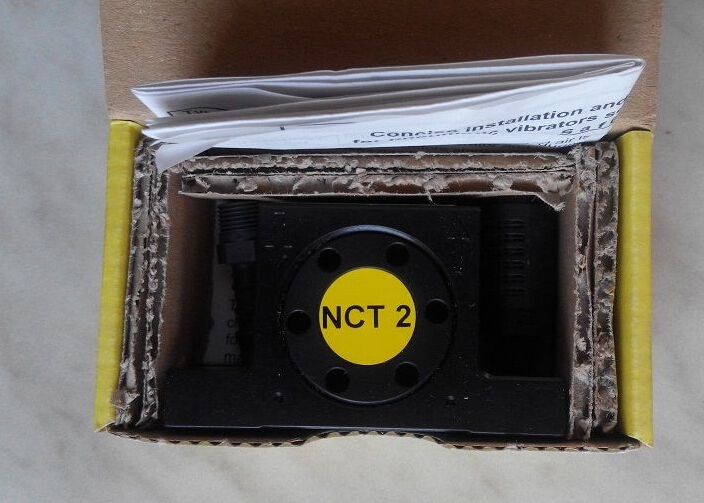

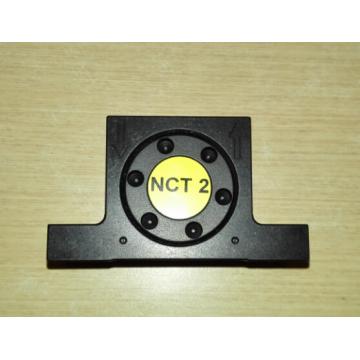

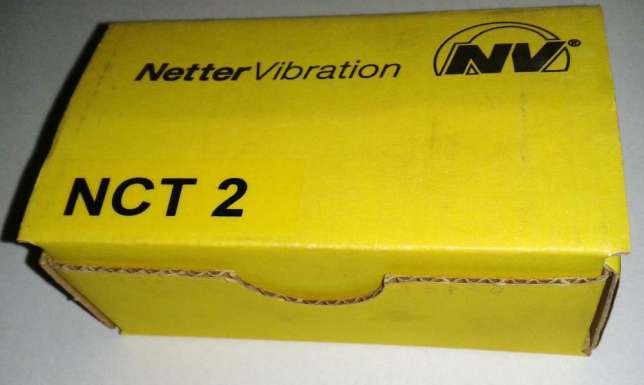

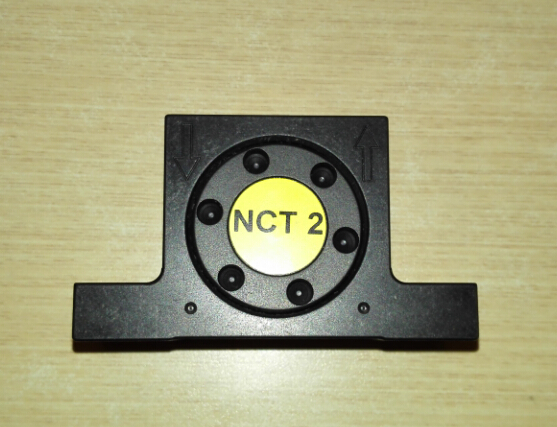

德国Netter气压式涡轮气动振动器NCT系列型号及功能： 型号 不平衡力 频率[min] 中央出力 牛顿(N) 空气消耗[/min] 噪音分贝[dB(A)] (cm/kg) 2bar 4bar 6bar 2bar 4bar 6bar 2bar 4bar 6bar 2bar 4bar 6bar NCT 1 0.0062 29,400 36,000 40,500 294 441 558 31 55 79 64 70 75 NCT 2 0.0124 24,000 28,600 32,400 392 557 714 33 56 82 65 69 72 NCT 3 0.016 27,000 33,600 38,400 631 976 1,275 45 83 115 69 76 79 NCT 4 0.023 23,800 29,800 33,800 715 1,121 1,441 46 79 117 65 71 71 NCT 5 0.049 18,600 24,600 27,600 919 1,607 2,022 119 188 261 68 80 85 NCT 10 0.096 16,500 20,400 22,500 1,434 2,191 2,666 119 192 262 73 75 82 NCT 15 0.142 17,400 21,000 23,400 2,365 3,444 4,277 229 392 600 76 85 86 NCT 29 0.282 12,600 15,000 18,000 2,459 3,485 5,018 227 363 592 68 72 77 NCT 55 0.545 11,100 13,800 16,200 3,683 5,692 7,844 465 796 1,158 77 80 85 NCT 108 1.081 9,000 10,200 12,000 4,802 6,168 8,537 455 751 1,226 73 79 84 NCT 126 1.262 8,000 9,900 10,500 4,430 6,783 7,631 630 1,160 1,687 71 79 83 NCT 250 2.502 5,100 6,900 7,800 3,569 6,533 8,348 625 1,125 1,845 71 78 82

德国Netter气压式涡轮气动振动器NCT系列本体尺寸图 : Type A (mm) B (mm) C (mm) D (mm) E (mm) F   G (mm) H (mm) K (mm) Mass (kg) NCT 1 40 27 70 56 6.5 1/8" 30 5.5 10 0.165 NCT 2 40 27 70 56 6.5 1/8" 30 5.5 10 0.162 NCT 3 50 32 86 68 7 1/8" 40 7 12 0.230 NCT 4 50 32 86 68 7 1/8" 40 7 12 0.240 NCT 5 65 43 113 90 9 1/4" 50 9 16 0.550 NCT 10 65 43 113 90 9 1/4" 50 9 16 0.570 NCT 15 80 56 128 104 9 1/4" 60 10 16 1.045 NCT 29 80 56 128 104 9 1/4" 60 10 16 1.090 NCT 55 100 73 160 130 11 3/8" 80 12 20 2.125 NCT 108 100 73 160 130 11 3/8" 80 12 20 2.250 NCT 126 120 86 194 152 17 3/8" 100 13 25 3.585 NCT 250 120 86 194 152 17 3/8" 100 13 25 3.820

商品标签

NCT1

￥9999元

nct3

￥9999元

NCT4

￥9999元

NCT4I

￥9999元
